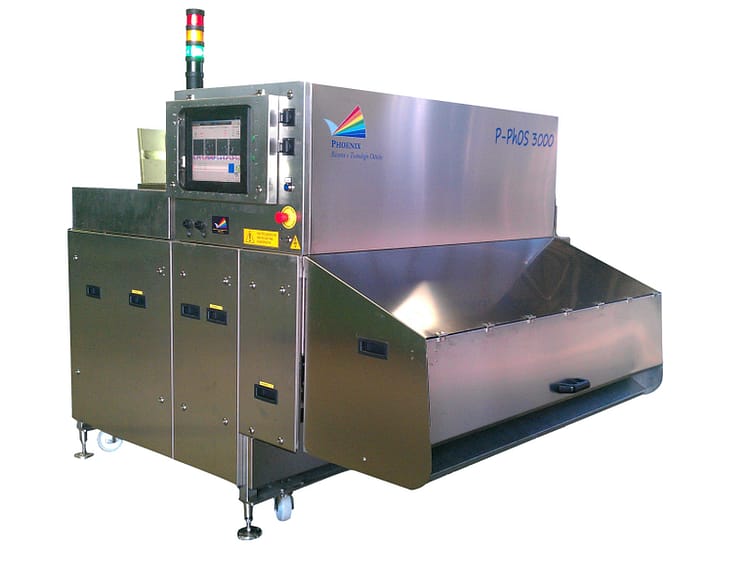

P-PhOS - Prunes Optical Sorter
Phoenix has a solution for sorting pitted prunes.
P-PhOS pitted prunes sorters can detect inside pits, loose pits, and pits fragments.
P-PhOS pitted prunes sorters, with sorting capacity of 1500, 2000 or 3000 Kg/hr, can be integrated in any production line, resulting in a quality control that’s second to none.
- No handling of prunes before their introduction in the entry hopper.
- Sorting of any size of prunes.
- The machine can be completely opened for cleaning.
- Air-jet system for a high ejection efficiency.

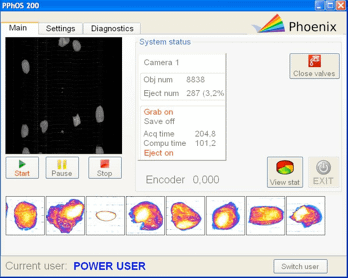

- Simple, intuitive and friendly user interface.
- Automatic calibration without need for operator adjustment.
- Selection sensibility changeable according to specific needs.
- High standards of reliability and only occasional actions required to the operator
| TECHNICAL DETAILS |
|
| Sorting Efficiency |
>90% of internal pits |
| False Rejection |
<3% of processed product |
| Production Capacity |
1.5-3 ton/hr |
| DIMENSIONS | |
| Width | 1600/2100 mm |
| Depth | 2300 mm |
| Height | 1800 mm |
| Power Supply Power consumption |
220V (+-10%) 50/60Hz 2 kW 2 kW |
| Connectivity | Ethernet and USB |
